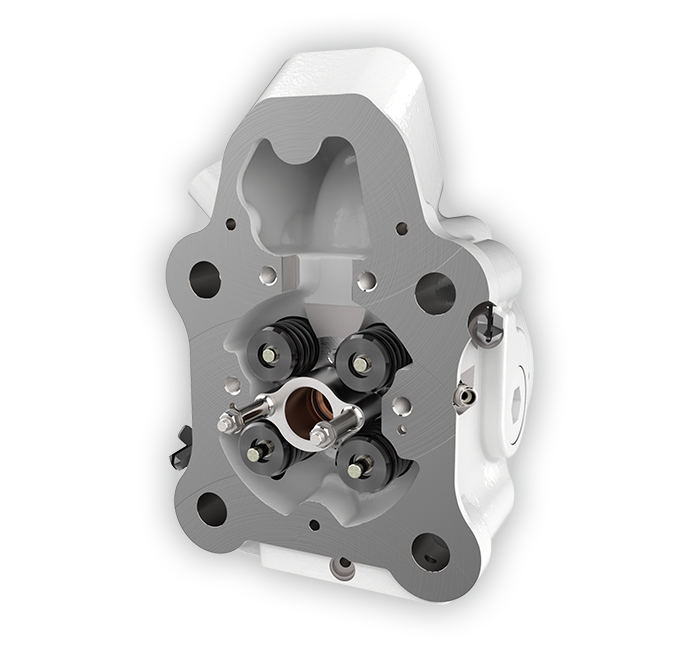

Cylinder heads belong to the critical core components of any combustion engine and are extremely loaded. Therefore they have an enormous impact on engine reliability and performance. Recognizing these facts, our series 6 cylinder heads is designed with an optimized cooling system, highest-quality valves and seat-rings and improved casting materials which result in increased reliability and trouble-free operation.
Optimized water channel geometry for better cooling, avoids valve-sticking and fire deck cracking
High quality materials to minimize wear & avoid cracks
Highest quality valves and seat-rings
Improved cooling properties of PowerUP cylinder heads in combination with PowerUP pre-combustion system have a positive impact on spark plug life

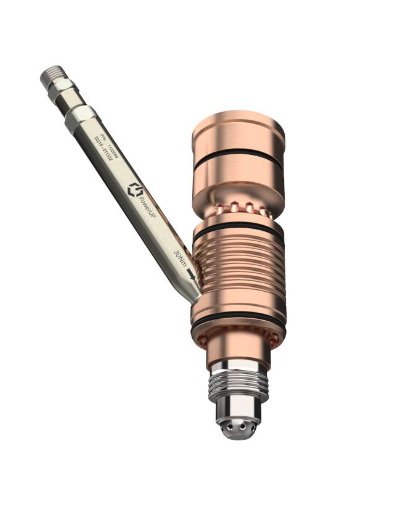

Our pre-combustion system consisting of pre-chamber, spark plug sleeve and pre-chamber gas valve works harmoniously together. PowerUP engineers have continuously optimized the functional design and reliability of every single component, while at the same time the overall dimensions remain unchanged to ensure full compatibility with OEM parts. Enabling steady combustion with minimal wear the system is increasing the reliability of the entire gas engine and allows for a flawless operation.
Designed for longer lifetime & less soot production
High quality materials to minimize wear & avoid cracks
Optimized cooling properties aid in prolonging spark plug lifetime
Improved O-rings to avoid leakages and unnecessary downtimes

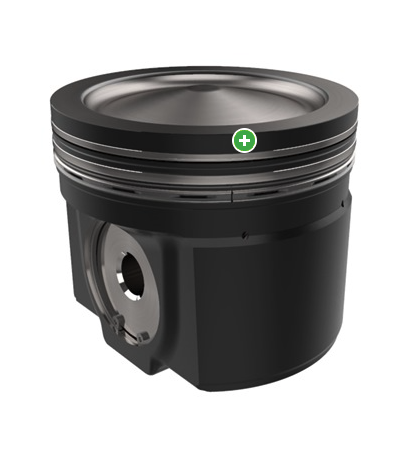

PowerUP’s steel piston with “mexican-hat-shape” was specially developed to avoid sticking of the top-ring and aids flawless operation of series 6-F engines. With our revolutionary one-piece design, we have eliminated the risk of piston-crown separation. The highest quality material and processing are making the PowerUP steel-piston the spare part of choice for your next series 6-F engine overhaul.
One-Piece-Design eliminates risk of piston-crown separation
Reduced temperatures at the top-ring for minimized oil coke deposits
Avoids top-ring sticking and cylinder-liner scuffing
Available for all series 6-F engines and for compression ratios 10.5, 11.5 and 12.0
Our blow-by filtration system significantly reduces the contamination of turbochargers, intercoolers and combustion chambers with oil-ash and oil-coke – thus extending the lifetime and performance of the entire gas engine. In addition, our blowby filter system scores with an unsurpassed service life and does not require any maintenance!
Expected lifetime of up to 30.000 operating hours
Guaranteed oil separation rate of 99,98%
High specific oil load capability eliminates the need for a multi-filter setup (except J624)
Compact design that comes with specially designed vibration decoupling to increase reliability

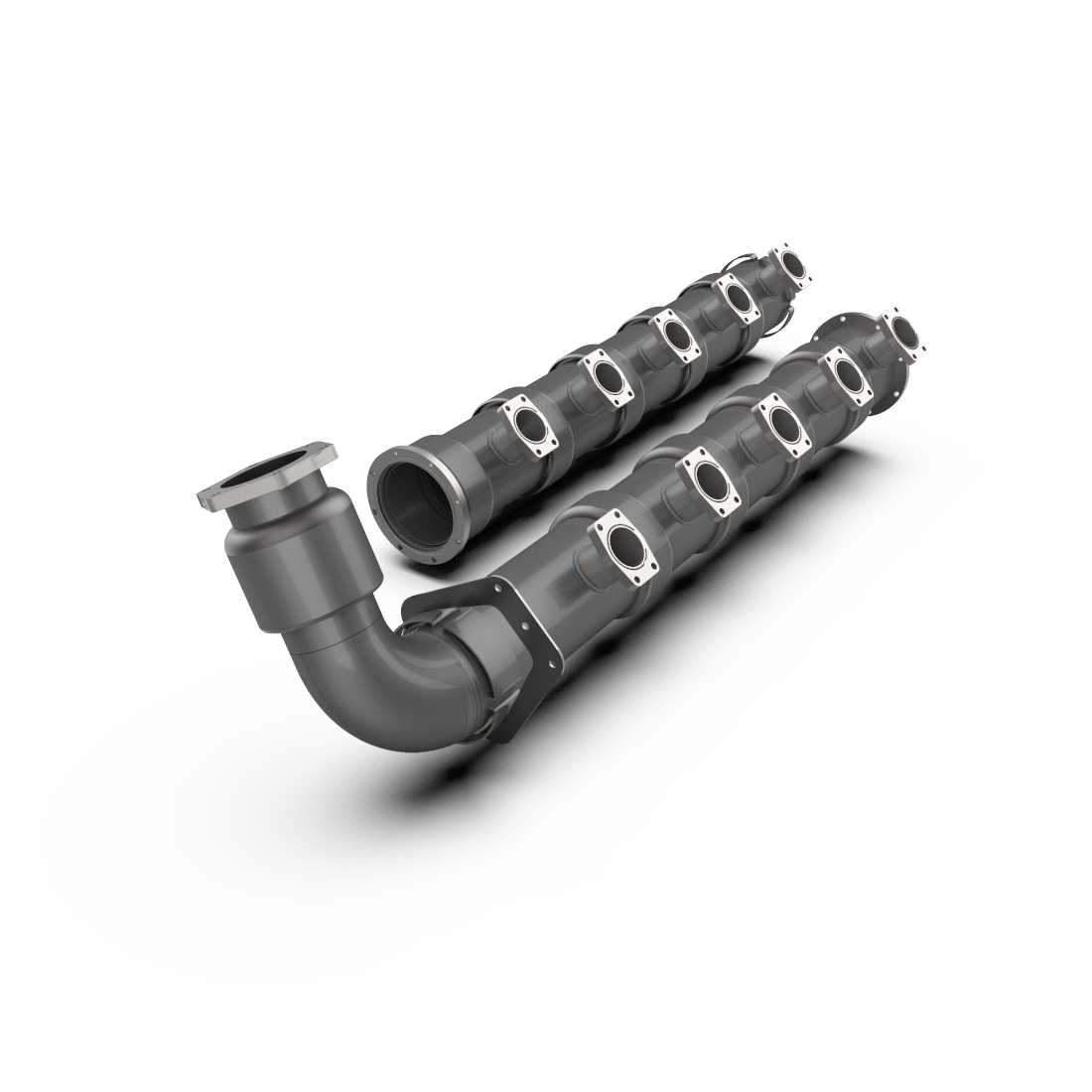

A damaged exhaust gas-line can have devastating influence on an engine’s performance and is also a major cost-driver upon an overhaul. Therefore it was a necessity for us, to provide our customers with a commercially efficient and reliable solution for an exchange of the series 6 exhaust gas line.
Available for all series 6 engines and cylinder-counts
Cost-effective solution for safe engine operation
Compatible with OEM soft- & hard insulations
Compact design that comes with specially designed vibration decoupling to increase reliability
